KONMOS make motor controllers are designed and developed including but not limited to electric vehicle motors, industrial motors and pump motors. Small and medium rating motor controllers are designed considering the need of local and global industry. Wide range of efficient and cost effective solutions for various applications ensures optimized performance, precise control and lasting reliability. Indigenous design, development, testing and manufacturing of motor controllers contributes to ATMANIRBHAR BHARAT ABHIYAAN and helps to make India as a preferred destination for production of electronic systems and cornerstone of modern technological advancements.

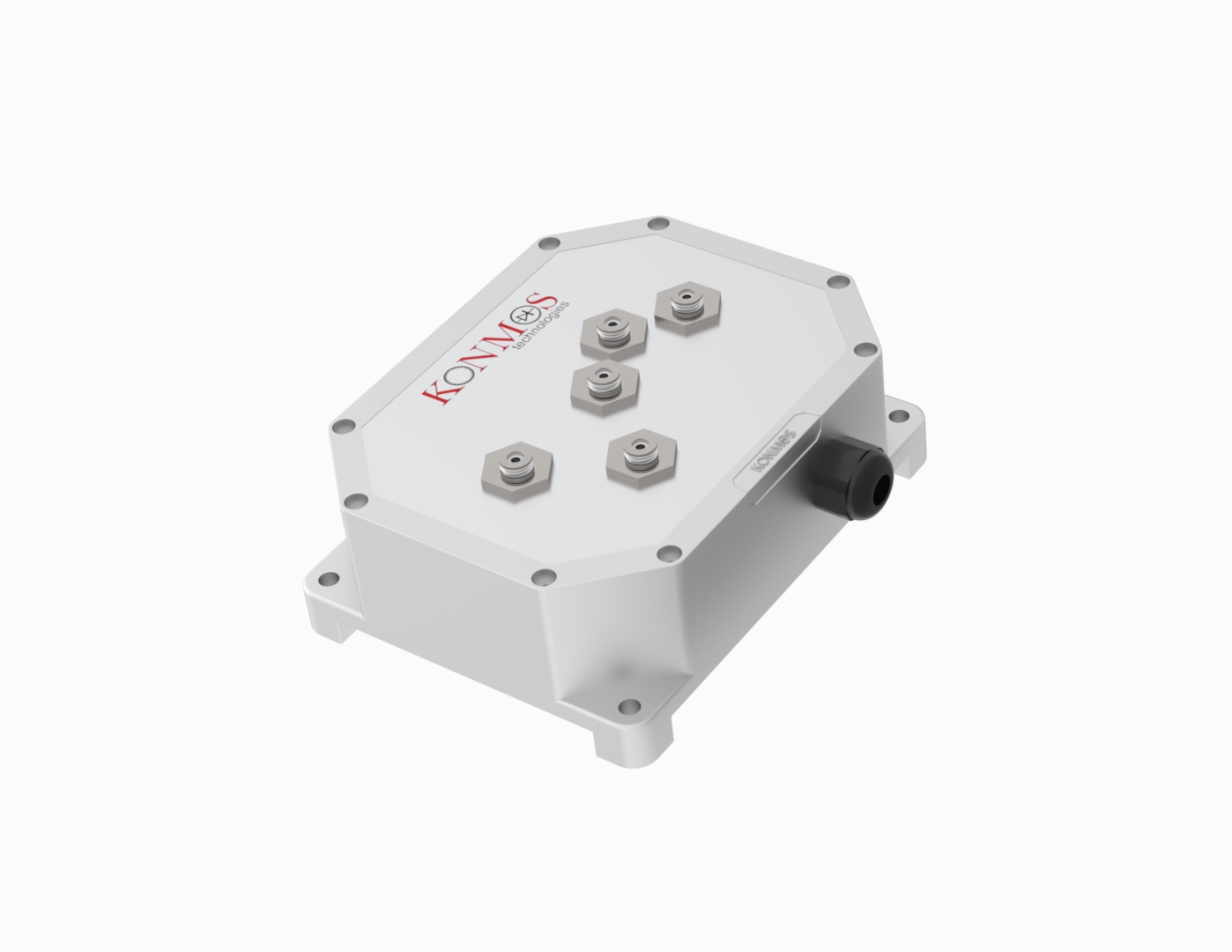

Controller designed, developed and manufactured for on-road and off-road electric mobility.
Specification | Range |
---|---|
Nominal Voltage | 48 V to 96 V |
Nominal Power | 1 kW to 10 kW |
Operation | Sensored or Sensorless |
Efficiency | >98 % |
Ingress Protection | IP 67 |
Energy efficient and powerful motor controllers are designed to ensure smooth and quiet speed-torque control along with configurable and programmable parameters for seamless integration with vehicle.
Four quadrant operation
Regenerative braking
Cruise control
Communication : CAN , UART
Temperature sensor : NTC, PTC, KTY83, KTY84
Position sensor : Resolver (Sin/Cos), Hall Sensor, Encoder
Four quadrant operation
Regenerative braking
Cruise control
Communication : CAN , UART
Temperature sensor : NTC, PTC, KTY83, KTY84
Position sensor : Resolver (Sin/Cos), Hall Sensor, Encoder
Traction control
Hill hold
Multiple protection
Analog and digital
Bluetooth
USB
Traction control
Hill hold
Multiple protection
Analog and digital
Bluetooth
USB

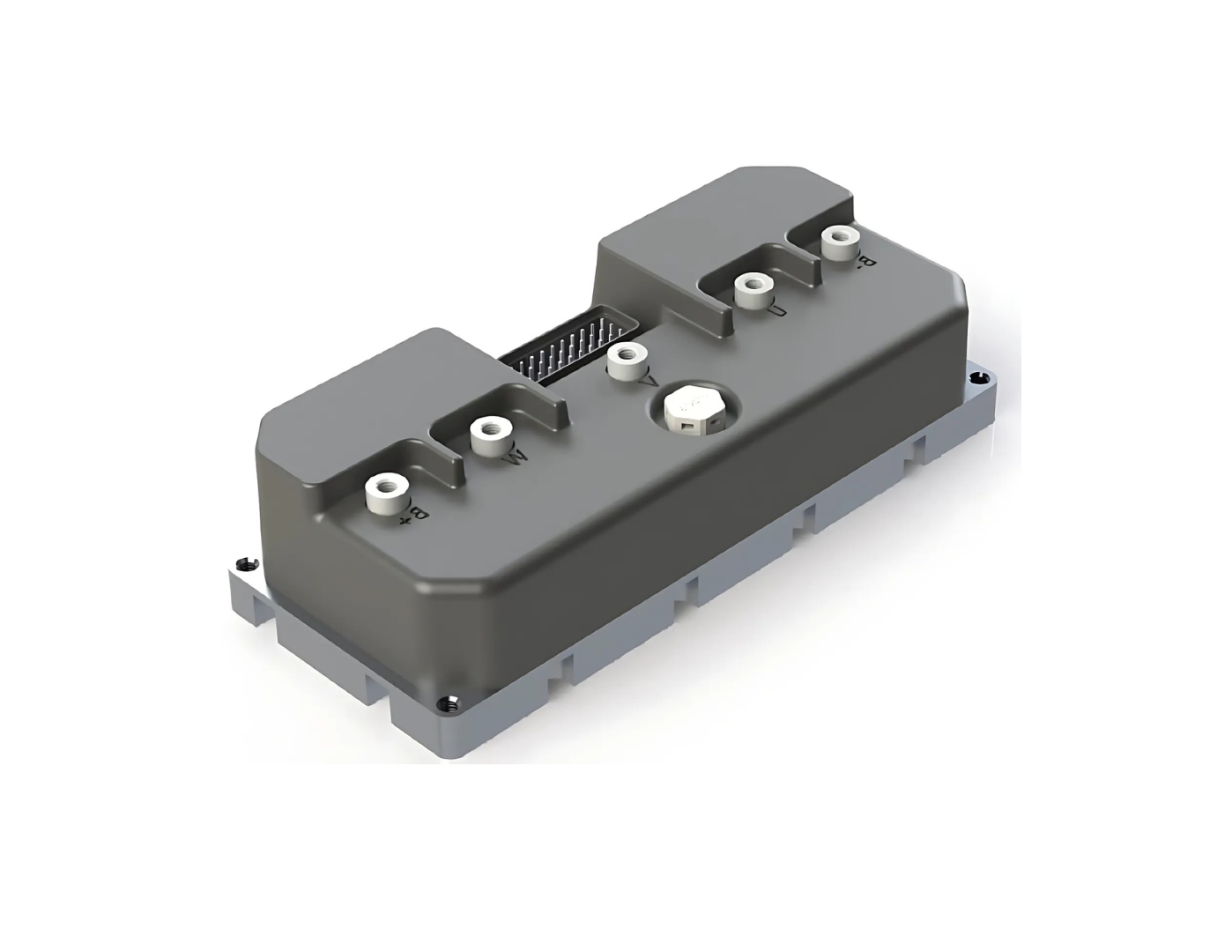

Parameter | SM100/150 | SM200/250 | SM300/350 |
---|---|---|---|
Operating Voltage | 36 - 84 V | 36 - 84 V | 36 - 84 V |
Battery Current | 100 / 150 A | 200 / 250 A | 300 / 350 A |
S1 (Peak) | 180 / 250 A | 300 / 350 A | 400 / 500 A |
S2 (Peak) | 300 / 400 A | 500 / 600 A | 650 / 700 A |
Operating Temperature | -10 to +85 °C | -10 to +85 °C | -10 to +85 °C |
Motor Support | PMSM / BLDC / Brushed DC | PMSM / BLDC / Brushed DC | PMSM / BLDC / Brushed DC |
Switching Frequency | 8 to 12.5 KHz | 8 to 12.5 KHz | 8 to 12.5 KHz |
Cooling Method | Air / Forced Air / Liquid | Air / Forced Air / Liquid | Air / Forced Air / Liquid |
